Friday, January 31, 2014

Highway 550 open!!!

Today, Jan 31, Highway 550 was opened - albeit partially - for the first time since its closing on Jan 13 due to rockfall on the Ruby Walls.  I don't believe 18 days is the longest stretch of closure on 550, but it is the longest in quite some time.

All of us involved in the undertaking are understandably proud to have played a part in the success of the rockfall mitigation project. Almost all of us on the mountainside team are Western Slope residents and most of us live in Ouray or Silverton. We were speaking daily to our friends and neighbors and they were curious about the progress and encouraging us in our dogged pursuit of a solution.

We know we made a difference.  And we felt like we were the right people thrust into the right circumstances at the right time.  It is with a different set of eyes that I view that 'open' sign on the highway reader board. A tremendous accomplishment by the entire CDOT team.

Thursday, January 30, 2014

Ruby Walls - Last day of net laying

Ruby Walls - Red Mountain Pass- Final nets in place

Wow.  It is kind of a surreal feeling to be on the backside of the helicopter-based net laying.  What a push it was to get that completed during this favorable stretch of high pressure.  With 36 nets in place over the talus and considerable scaling completed at the top of the north gulley, the 'heavy lifting' of this project is in the rear view mirror.  There are still some important tasks remaining such as shackling the remainder of the net drapery, some spot scaling, and the installation of a cantilevered net fence at the highway level. But there won't be any more 'working for hours on end  underneath a rock-spitting 400 foot headwall' and that is a relief for all involved in this rockfall mitigation project.

We were scheduled for one more day of good weather and we took full advantage of the conditions.  We flew in the last four panels, did a bunch of scaling in the north gulley including the removal of a behemoth boulder that was teetering on the slope, shackled about 1/3 of the drapery, and scouted the remaining pockets of hanging talus on the north side of the recent disturbance.  It was a very full day as they all have been.  Collectively, we were dragging with low energy levels as we descended to the highway at the end of the day.

This unique project has been without a doubt one of the most scary, dangerous, and yet gratifying endeavors I have ever been involved with in my professional career as a ropework practitioner.  We had around 12 people on the mountain side every day representing four different CDOT contractors. Most of us met for the first time the initial morning we ascended the fixed ropes. There was a tremendous amount of professional respect, an amazing element of team work, and some serious blood, sweat, and tears poured into that slope.

So far we have a 100% safety record on the slope with some close calls due to overhead rockfall, but no injuries.  We are all very proud of the overall team effort and glad to have played an important contributing role in the success of the project.  Like everyone else, I hope the pass opens soon. I am ready to go skiing!

Cory managing a rope station

The last net inbound

Placing a net in the north gulley

The crew at the highway. Glad to be safely down.

Ruby Walls on Jan. 29 with 36 nets in place

Searching for the keystone on the behemoth boulder

Shackling the final net

Tuesday, January 28, 2014

Ruby Walls - scaling bonanza

Great progress has been made each and every day, and today was no exception. It was the culmination of a lot of prep work, some favorable flying conditions, and a general 'get it done' enthusiasm that resulted in 15 additional panels being laid over the talus field.

We are steadily progressing towards the highway and there could be as few as a couple of panels remaining to complete the air support end of the operation.  The snow is predicted to be coming our way soon, so we hope to wrap up the helicopter ops tomorrow and then scale as much rock as possible in the remaining time before the storm.

Monday, January 27, 2014

Red Mountain Pass - Laying Net

Finally after a challenging week of work, we started laying mesh mats over the talus slopes below the Ruby Walls.  It was another day of high pressure. The favorable weather has really made the project achievable.

We got in another 9 mats today giving us 17 in total. We could use just ONE MORE good day of weather.  We got stood down for wind in the gorge this afternoon and that prevented us from finishing our third row deep of mats. Perhaps tomorrow AM.

Kevin and I entertained ourselves during the short wait for the wind to die down by trundling monster boulders down the north chute.  Many of them were launching clear over the highway and down towards the Uncompahgre river.

The crew has really been looking out for each other.  Our spotter on the top, Michael from Silverton, had to egress by rope due to the high winds and no helo pickup. We had supplied him with rope and also had given him the tour of the top of the cliff a few days ago.  He spots up top for bigger rockfall and prevents animals from getting over the top of our work area. Michael rappelled the 400 foot wall with aplomb and we made our way down the rope access path together.

Another day of injury free work. Let's keep it up and stay alert!

Sunday, January 26, 2014

Ruby Walls rockfall mitigation- Red Mountain Pass

Yesterday, the team psyche was very, very high.  We were well positioned to lay down some panels.  This was on the heels of a very challenging and pretty hazardous week of scaling rock, drilling anchor holes, and prepping the site.

We managed to get 8 of the approximately 40'ish panels draped on the talus field. Everyone did a phenomenal job to help each other be safe and get the work done.  The spotters were performing sentry duty for the crew on the slopes with their eagle eyes, unwavering attention to the mass of rock above the us, and quick deployment of the air horns. When you have a 400 foot cliff above you, a blast of an air horn gives you those precious extra seconds to do the 'Barry Sanders' and dance around the volleys of rock. Most of the stuff came down between 0930 and 1100. That is very typical of what we have been experiencing. It is one thing to cross under a hazard like the Ruby Walls. It is an entirely different sort of thing to park yourself for hours on end on an anchored rope in that kind of environment.  We all felt the sense of relief to extend our anchored ropes downslope for the next row of mats and get away from the base of the wall. You do feel hunted.

The pilot and helo crew did a fantastic job of laying those nets in where they needed to be one after another. Projects like this one require a high degree of skill and professionalism to go well and we are fortunate to be operating alongside some very capable practitioners.

Today, if all goes well, we should really stitch up that face with panels.  We have our systems well rehearsed and now we just need the winds to remain calm.

Enjoy the video compilation from the first several days of the project along with some recent images.

Remember, safety is no accident!

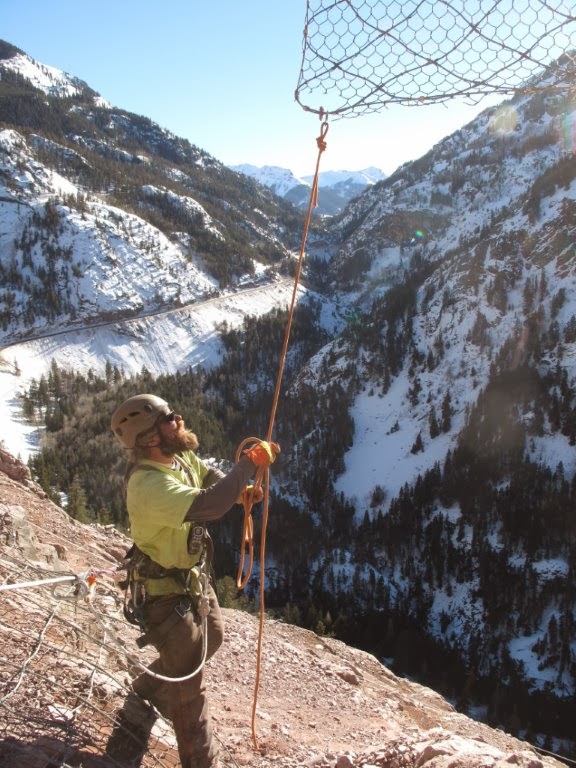

Carlin managing the panel tagline

Surveying the scene

First unfurled panel on the way

Grady on point

Kevin and Tim at base of the wall

Technical flying by Phillip

Friday, January 24, 2014

Rigging for Rockfall - the Ruby Walls project ; Red Mountain Pass

So there I was last Saturday afternoon having a restful weekend when I get a call.  That call changed the complexion of that day and all the days since.  And the entire odyssey has been an amazing adventure. Every day brings a new challenge and different set of complex dynamics.  The problem solving and risk management is very engaging.

On the evening of January 12, the Ruby Walls above highway 550 just south of Ouray, Colorado unleashed a massive spontaneous rockfall.  The debris spilled across the highway rendering it unpassable.  Rockfall at the Ruby Walls is par for the course, but this particular volley was exceptional in nature. Basically, an entire cliff face about the size of an office building calved off of the wall spilling down to the slopes below.

On Saturday, January 18, I got brought into a conference call with the incident management team from CDOT.  They were interested in getting one of their top geologist/rockfall specialists safely inserted into the rockfall zone from above.  Moving live loads in technical terrain is our specialty, so it seemed like a natural fit. We signed up.

The next day, four Rigging for Rescue personnel and the CDOT rockfall specialist were flown in on helicopter to a pretty spectacular one-skid landing on the slope above the main Ruby Walls headwall.  We were in the care of the capable hands of Lee (pilot) and Joe (spotter) from Helitrax in Telluride.  Lee was steady as a surgeon every time and set us in there just right. Thank you Lee and Joe!

The terrain was pretty tricky with snow, ice, and downsloping rock. We constructed anchors, rigged ropes, and after about 2 hours of site prep were ready to lower an RfR rope tech down the wall.  Kevin drew the long straw and he got to go down with the scaling bar and send down several massive boulders over the headwall. Does that ever get boring? I doubt it. After the top was properly cleared of objective hazard, Kevin and the CDOT specialist were lowered down the main headwall to the talus slopes below.

The lower was 125 meters or about 400 feet. A big wall by anybodys standards.  We lowered over the unchanged rock to the north of the newly exfoliated rock.  Great, solid rock and very, very steep. Overhanging for a good portion. Steep is good. The rocks from above sail over your head should they dislodge.

Bob, the rockfall specialist from CDOT gathered the information he needed and then he and Kevin took a rope and some rigging equipment and descended the relatively moderate terrain to the north of the scar all the way to Highway 550.  We packed up gear at the top and took the scenic flight home to Ouray.

I kind of thought that might be the end of our job.  Little did I know...The info that was gathered by Bob was compelling and now the rockfall mitigation plan was starting to take shape.  Our services were retained to set a rope access path up to the debris field from the highway below.  We completed this the next day using a top-down strategy. We were flown in as before and then rappelled down the 400 foot face.  I drilled a 2-bolt anchor midway down so that we could complete the rappels using shorter ropes.  Once at the bottom, we called in for the helicopter sling load and they delivered 500 meters (1800 feet) of rope and rigging material.

We started the process from the apron of the wall and followed our noses down the path of least resistance trending well away from the shooting gallery to our south.  It took all day and a lot of scaling and rigging to make it safe.  But by late afternoon we did our last rappel and had our boots on highway 550.  Some of the Yenter company personnel were there to meet us and they were psyched!  They had spent some time up high on the wall earlier in the week and felt that it needed a different approach. We were glad to help and proud to link the highway to the work area in a logical and effective manner.  Solving puzzles is a lot of fun. Particularly when it involves ropes and rigging.

So that was really going to be the end of it for our part...Yeah, right :). One thing lead to another and we were asked to be the rope access and slope safety officers for the scaling, rigging, and rockfall mitigation. We said yes, enthusiastically!  Highway 550 over Red Mountain Pass is the recreational and business lifeblood of a few small Western Slope communities including our own in Ouray and we wanted to help. Plus, we were now invested.  This rope access path we constructed was our baby and we wanted to manage it and fine tune it.

The past week has been an absolute blur. I don't even know what day it is. All I know is that we have a fantastic team up high on the hill that is gelling and getting some serious work done. I only wish the highway were open so you could see the MASSIVE amount of rock we are scaling off of this face.  It is mind boggling.  The newness of the geology is fascinating. It is a very unique environment to be able to explore. You can feel the rawness. One tree WAY down the slope is probably around 60+ years old and is still standing strong.  However, it has almost no branches. They were raked clean off. Amazing display of energy.

Tomorrow we plan to continue to work on drilling the anchor holes for the main cable that will support the drapery panels.  Once the cable is securely in place, the helicopter will fly in 46 panels one at a time and those will be attached in-series to the anchored wire rope.  These panels will lock in the remaining talus and reduce the rockfall hazard significantly.

Thank you for your patience with the highway closure.  It is an incredibly dynamic and challenging work environment. I have spent a lot of time in remote alpine ranges of the world and the upper portions of the Ruby Walls are as wild as any of them. We are diligently addressing safety throughout the entire day and are empowered by our progress.  I hope to come up for air soon and get some video edited. I have some pretty amazing footage on my SD card. Stay tuned and enjoy the eye candy.
End of the rappel off the Ruby Walls-Mt Abrahms as a backdrop

Kevin and Bob above a sea of choss

Lowering on the scout day

Rotor clearance is not abundant- very technical flying

Kevin scoping the debris with rappellers above

Receiving our sling load of rope for the rope pathway

Kevin about to have fun with the scaling bar

A-Star B3 taxi in Ouray. Thank you Helitrax!!

Sling-loading gear to the base of the wall

Now it is time to drill some anchors!

Coming in for the one-skid landing

Our LZ up top. The helo puts the skid on the orange tape.

Ruby Walls from the air

Ruby Walls from Mother Cline at Hwy 550

Sling load approaching

Wade seeing the site for the first time. Awe inspiring!
